SWD大流量砂磨机

创始人

2025-04-01 11:22:23

0次

大流量内部2

大流量内部3

小腔体，高流量，高产能

Smaller process chamber,High flow,High capacity

SWD 大流量砂磨机采用新研发功能部件为你提供更经济的湿法研磨工艺和技术，高效率研磨盘片和超大离心轮及筛网使研磨珠子能更好的分布在研磨腔，利用离心动态分离式筛网提高流量，研磨珠能安全的分离，甚至在高流量时高效率的分离系统发挥作用包含下列单元：1. 离心轮及筛网和整合的盘片；2 .特殊的超大筛网。

SWD large flow sand mill with new functional components provide wet grinding techniques and more economical for you,high efficiency and large centrifugal wheel grinding disc and the grinding beads screen better distribution in the grinding cavity,split screen to improve the flow by centrifugal separation can be dynamic,secure,even in high traffic separation system high efficiency play a role incudes the following units:1.disc centrifugal wheel and screen and integration;2.special large screen.

工艺特性/Properties of the Process

排除腔体内无效径向力可更换各种材质的内腔体可更换前后端盖和易磨损备件为耐磨损材质特殊盘片和轴心设计离心动态分离式筛网	Elimination of ineffective radial force in the cavity Replacement of the inner cavity of various materials Wear and tear material for wear and wear parts before and after replacement Special disc and axdle center design Centrifugal dynamie separation sieve

优势表现/Superiority performance

介于高能量密度和传统砂磨机之间的高效率研磨设备通常使用单道次研磨工艺
特殊的研磨珠保持设计
特殊之超大筛网清洗设计
适用于高磨损产品
研磨分散大批量涂料
利用离心动态分离式筛网提高流量
容易更换产品接触部之备件

Hohefioencygindng eoupmert between high enegydensty and tradifonal sandmil
Asingle pass grindng process is usually used
Special grindng bead maintenance design
Specal utra large screen deaning design
Sutable for high wear products
Lapping and dispersing largemass paint
Use centrifugaldynamic separation screen to increase fiow rate
Easy replacement of the spare parts of the contact section of the produc

技术参数/Technical parameters

型号 Type	SWD-2	SWD-5	SWD-20	SWD-30	SWD-50	SWD-100	SWD-300	SWD-500	SWD-1000
主机功率 Main unit power (kw)	3-4	5.5-7.5	18.5-22	22-30	37-45	66-75	90-132	100-200	315-355
容器容积Vessel capacity (L)	2	5	20	30	50	100	300	500	1000
产品最高流量 Maximum flow rate (L/h)	5-20	10-100	50-250	100-500	200-1000	250-2500	>2000	>3000	>5000

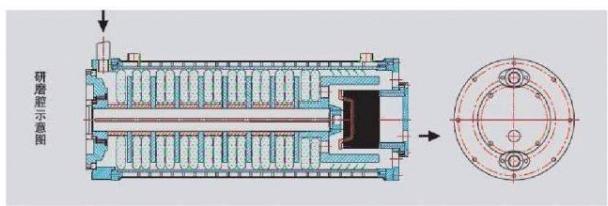

SWD大流量砂磨机

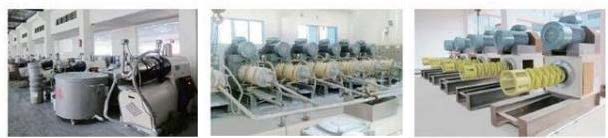

SWD大流量砂磨机2

SWD 流量砂磨机
